Will the electric-powered flight be turned into an everyday reality? NASA’s X-57 Maxwell moves towards first flight


@NASA X-57 Maxwell; @nasa.gov

X-57 Maxwell, NASA’s first all-electric plane moves from the prototype phase towards first flight.

NASA to Begin High-Voltage Ground Testing on All-Electric X-57. Engineers, researchers, pilots, visual artists, and
many other people from the four flight centers and business partnerships work together to make the X-57 Maxwell
idea a reality.

What is the X-57? A small, experimental airplane powered by electricity developed by NASA. The independent
agency of the U.S. federal government responsible for the civilian space program believes that all-electric
technology will make flying cleaner, quieter, and more sustainable. The electric motors can be placed anywhere on
the plane to improve efficiency.

NASA is set to start high-voltage functional ground testing of the agency’s first all-electric X-plane, the X-57 Maxwell, which will perform flights to help develop certification standards for emerging electric aircraft. NASA is also supporting these new electric aircraft by developing quiet, efficient, reliable technology these vehicles will need in routine use.

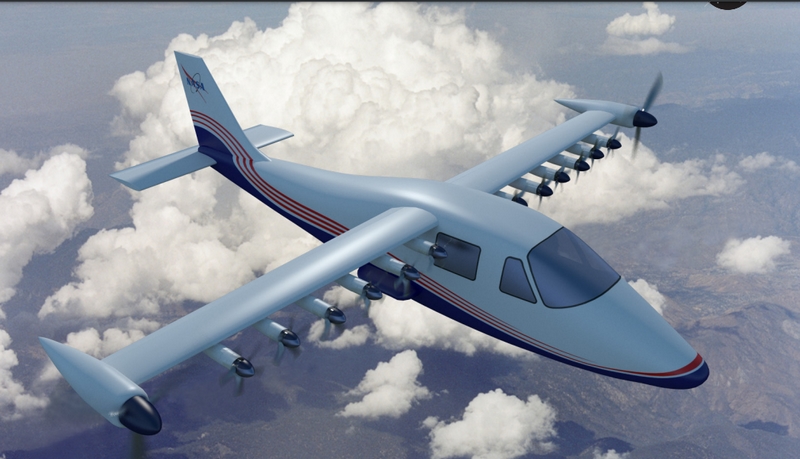

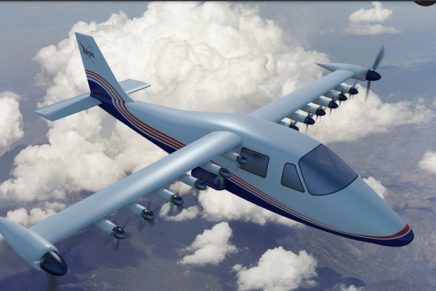

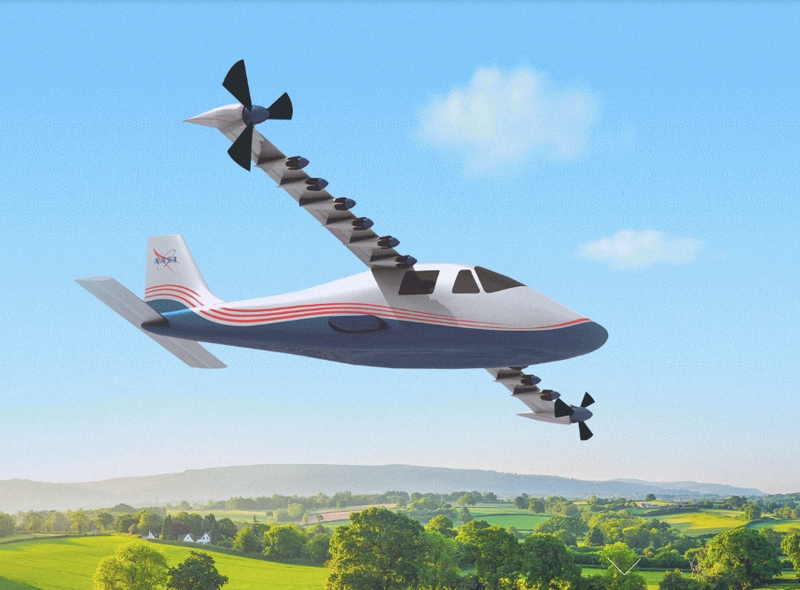

The X-57 aircraft uses 12 small motors located across the wing to increase airflow so that the wing produces lift  even when the aircraft is flying slowly. You’ve probably noticed all the propellers along X-57’s wing. It takes a lot of lift to get an airplane off the ground. The plane uses rechargeable lithium-ion batteries.

@NASA X-57 Maxwell; @nasa.gov

The testing will take place at NASA’s Armstrong Flight Research Center in Edwards, California, marking a pivotal
milestone for the project as NASA proceeds from the component design and prototype phase to operation of the
vehicle as an integrated aircraft, taking a critical step closer toward taxi tests and first flight.

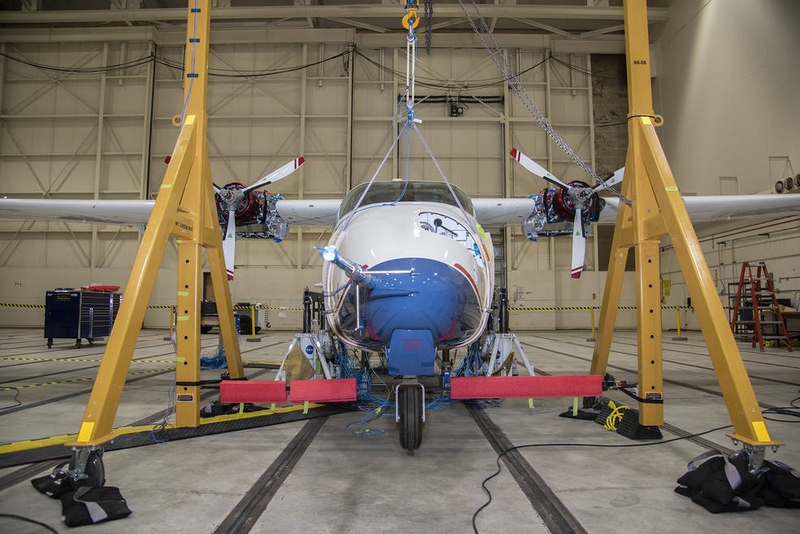

The X-57, currently in its first configuration as an electric aircraft, called Mod 2, will use a battery support system for
this phase of testing, drawing power from a large, high-voltage power supply as development on the X-plane’s
battery control system nears completion.

Testing is expected to start with low power, checking the startup and shutdown sequences and verifying that the new
motor control software boots up and controls the motors as expected. This software and other major components
were recently redesigned based on lessons learned from previous testing by the project’s prime contractor,
Empirical Systems Aerospace, or ESAero, of San Luis Obispo, California.

These tests will include higher-power operation of the vehicle. The first pair of electric cruise motors to fly on the X-
57, which were delivered by ESAero, will be powered up and activated, allowing engineers to ensure that the
vehicle’s propellers spin as designed.

This will be followed by throttling up the motors to make sure they provide all the power intended, validating the vehicle’s instrumentation system, and verifying whether all the sensors installed across the aircraft are functional.

This high-voltage testing will feed directly into final verification and validation testing, a critical final step before taxi tests begin.

“Many of the team members operating this test will be the same ones who will be sitting in the control room for flight, and that’s why I’m excited,” said Sean Clarke, NASA’s X-57 principal investigator. “We’ve turned a corner from system design and lab tests, to turning it over to the NASA flight systems and operations engineers to actually operate the vehicle. What they’re learning in this test, they’ll take with them into the control room for first flight.”
